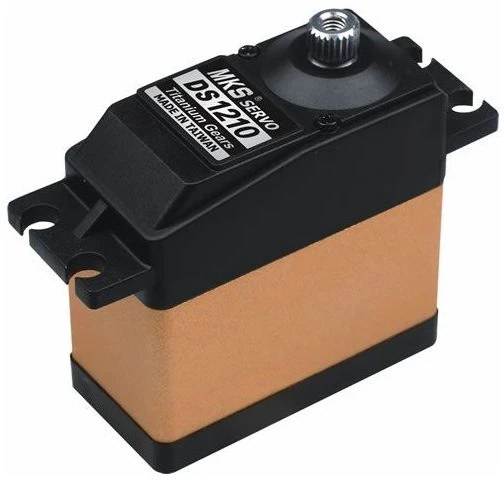

Mks DS1210 Digital High-Torque Servo
Original price was: $36.50.$25.55Current price is: $25.55.
- Nature-friendly materials, 100%.
- Free Shipping Worldwide
- Get the Best for Less
- Safe and Secure Payments, Always
MKS Servo with Aluminum Body and Titanium Gears
The DS1210 Digital Servo with aluminum body, titanium gears and dual ball bearing output shaft is spill resistant and was created for all around use in radio control model cars, airplanes and helicopters. Water/dust sealed case allows this servo to operate in some of the most extreme environments.
- Dead Band: 0.0002 ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 120Hz
- (RX) Required Pulse: 3.5 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8 ~5.8 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (4.8V): 0.15 sec/60° degrees at no load
- Operating Speed (5.8V): 0.12 sec/60° degrees at no load
- Stall Torque (4.8V): 8.05 kg.cm (111.79 oz/in)
- Stall Torque (5.8V): 10 kg.cm (138.87 oz/in)
- Output Shaft Spline: Futaba
- 360° Modifiable: NO
- Motor Type: DC Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X40.3 mm (1.57×0.79×1.58 in)
- Weight: 56 g (1.97 oz)
MKS Servo with Aluminum Body and Titanium Gears
The DS1210 Digital Servo with aluminum body, titanium gears and dual ball bearing output shaft is spill resistant and was created for all around use in radio control model cars, airplanes and helicopters. Water/dust sealed case allows this servo to operate in some of the most extreme environments.
- Dead Band: 0.0002 ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 120Hz
- (RX) Required Pulse: 3.5 ~5.0 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8 ~5.8 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (4.8V): 0.15 sec/60° degrees at no load
- Operating Speed (5.8V): 0.12 sec/60° degrees at no load
- Stall Torque (4.8V): 8.05 kg.cm (111.79 oz/in)
- Stall Torque (5.8V): 10 kg.cm (138.87 oz/in)
- Output Shaft Spline: Futaba
- 360° Modifiable: NO
- Motor Type: DC Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X40.3 mm (1.57×0.79×1.58 in)
- Weight: 56 g (1.97 oz)
