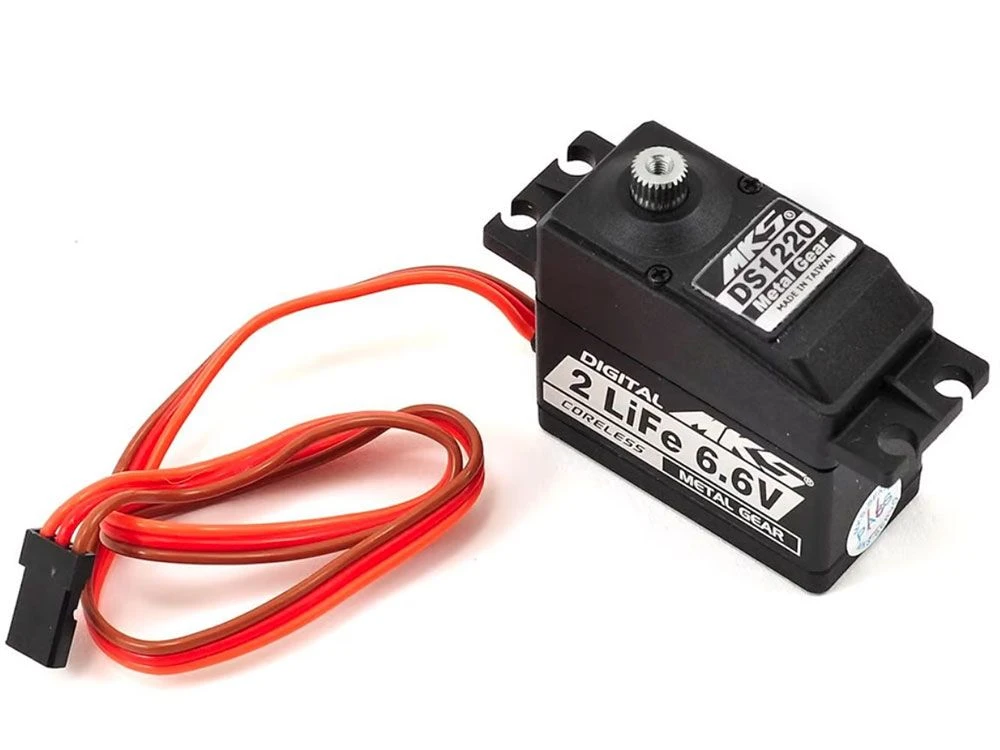

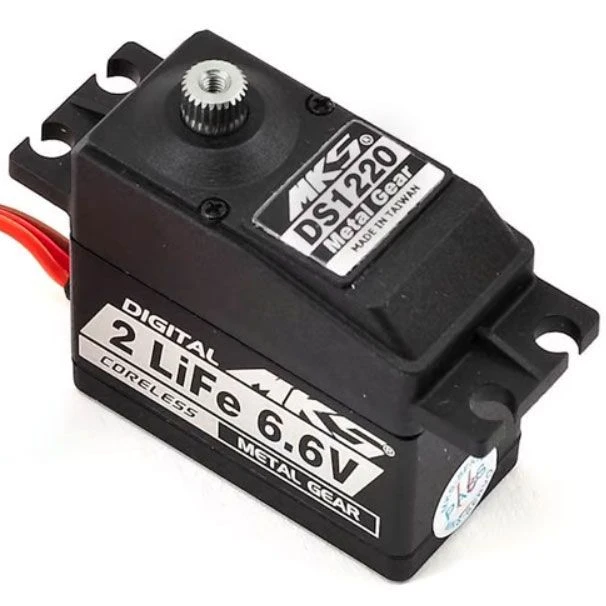

Mks DS1220 Digital High-Torque Servo
Original price was: $89.99.$62.99Current price is: $62.99.
- Nature-friendly materials, 100%.
- Free Shipping Worldwide
- Get the Best for Less
- Safe and Secure Payments, Always
DS1220 Digital High-Torque Servo, with Titanium Gears, by MKS
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520μs / 333hz
- (RX) Required Pulse: 3.0~6.6 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8~6.6 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.159 sec/60° degrees at no load
- Operating Speed (6.6V): 0.14 sec/60° dagrees at no load
- Stall Torque (6V): 24.9 kg-cm (346 oz/in)
- Stall Torque (6.6V): 30.4 kg-cm (422 oz/in)
- Motor Type: Coreless Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X37 mm
- Weight: 57.70 g ( 2.03oz)
DS1220 Digital High-Torque Servo, with Titanium Gears, by MKS
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520μs / 333hz
- (RX) Required Pulse: 3.0~6.6 Volt Peak to Peak Square Wave
- Operating Voltage: 4.8~6.6 V DC Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.159 sec/60° degrees at no load
- Operating Speed (6.6V): 0.14 sec/60° dagrees at no load
- Stall Torque (6V): 24.9 kg-cm (346 oz/in)
- Stall Torque (6.6V): 30.4 kg-cm (422 oz/in)
- Motor Type: Coreless Motor
- Potentiometer Drive: Direct Drive
- Driver Type: FET
- Bearing Type: Dual Ball Bearings
- Gear Type: Titanium Gears
- Programmable: NO
- Connector Wire Length: 15.0 cm (5.9 in)
- Dimensions: 40X20X37 mm
- Weight: 57.70 g ( 2.03oz)
