Mks HBL380 X8 Digital Brushless High-Torque High Voltage Servo
Original price was: $212.99.$97.99Current price is: $97.99.
- Nature-friendly materials, 100%.
- Free Shipping Worldwide
- Get the Best for Less
- Safe and Secure Payments, Always

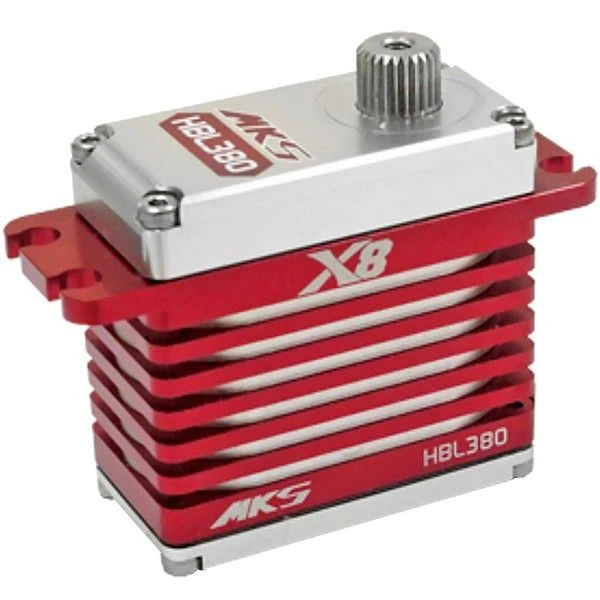

HBL380 X8 Digital Brushless High-Torque High Voltage Servo, with Titanium Gears, by MKS
Note: X8 Servos are Not Compatible with Standard Servo Arms. See Related Items for Available Arms
- Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520μs / 333hz
- Operating Voltage: 3.5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.114 sec/60° degrees at no load
- Operating Speed (7.4V): 0.092 sec/60° degrees at no load
- Operating Speed (8.4V): 0.082 sec/60° degrees at no load
- Stall Torque (6V): 430.51 oz/in (31 kg/cm)
- Stall Torque (7.4V): 541.61 oz/in (39 kg/cm)
- Stall Torque (8.4V): 569.38 oz/in (41 kg/cm)
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12×8 mm Double bearings
- Gear Type: Chrome-Titanium alloy gear
- Connector Wire Length: 24.0 cm (9.4 in)

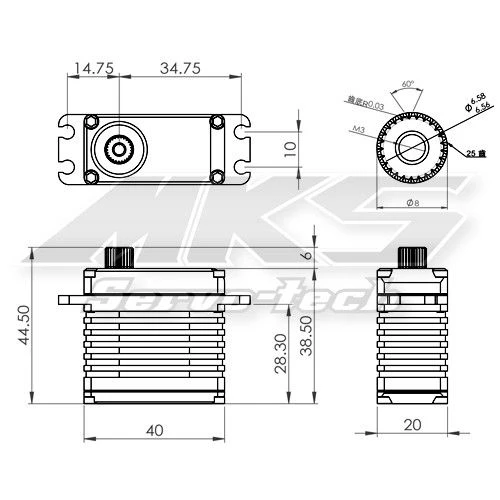

- Dimensions: 40 x 20 x 38.5 mm
- Weight: 73 g
HBL380 X8 Digital Brushless High-Torque High Voltage Servo, with Titanium Gears, by MKS
Note: X8 Servos are Not Compatible with Standard Servo Arms. See Related Items for Available Arms
- Electric current draw： 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
- Dead Band: 0.0008ms (Default)
- Control System: +Pulse Width Control
- Working Frequence: 1520μs / 333hz
- Operating Voltage: 3.5 ~ 8.4 Volts
- Operating Temperature Range: -10 to + 60 Degree C
- Operating Speed (6V): 0.114 sec/60° degrees at no load
- Operating Speed (7.4V): 0.092 sec/60° degrees at no load
- Operating Speed (8.4V): 0.082 sec/60° degrees at no load
- Stall Torque (6V): 430.51 oz/in (31 kg/cm)
- Stall Torque (7.4V): 541.61 oz/in (39 kg/cm)
- Stall Torque (8.4V): 569.38 oz/in (41 kg/cm)
- Motor Type: Brushless Motor
- Potentiometer Drive: Indirect Drive
- Bearing Type: 12×8 mm Double bearings
- Gear Type: Chrome-Titanium alloy gear
- Connector Wire Length: 24.0 cm (9.4 in)
- Dimensions: 40 x 20 x 38.5 mm
- Weight: 73 g
