P200-RX Turbine Engine, 52 Lbs Thrust, By JetCat

Original price was: $361.00.Current price is: $95.99.

Nature-friendly materials, 100%.

Free Shipping Worldwide

Get the Best for Less

Safe and Secure Payments, Always

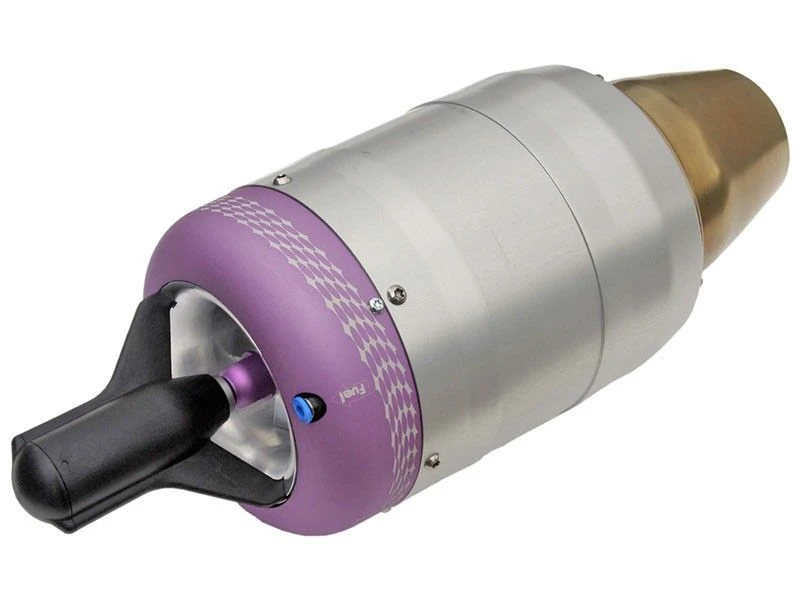

P200-RX Turbine Engine, 52 lbs Thrust, by JetCat

JetCat P-200-RX turbine comes complete with HEAVY DUTY internal starter and includes:

Jet-tronic ECU (fuel control electronics)
GSU (Display and Programmer)
LED I/O board
Miniature fuel pump
Electronic starting gas valve
Electronic Fuel valve
Fuel tubing
Tubing connector set
Filters
Cable set
Starting gas tank
Turbine mounting clamp
Detailed instruction manual

Thrust: 52 lbs @ 112,000 RPM
Weight: 5.53 lb (2510g)
Diameter: 5.12 inches (130 mm)
RPM Range: 33,000 – 112,000 RPM
Exhaust gas temp.: MAX 750°C
Fuel consumption: 25 oz per/min at full power
Fuel: Jet A1, 1-K kerosene
Lubrication: approximately 5% synthetic Oil in the fuel
Maintenance interval: 25 hours

Internal kerosene starting plug for single fuel operation. Fast startup!

Now Includes the ECU V10.0

The completely redesigned V10.0 ECU is three times smaller than the V6.0 ECU, yet has all its proven capabilities and more at a weight of only 26g!

The updated ECU comprises a high speed digital power bus for control and power supply of all engine peripherals (e.g. engine, fuel pump, solenoids, smoke pump, lighting systems, etc. ) with a minimum of wiring connections.

An on board precision pressure and ambient temperature sensor allows for optimum engine control, independent to environmental conditions.

Includes JetCat Mini-GSU

The JetCat Mini-GSU is an optional miniature Ground Support Unit (GSU). It comprises a 2×16 character alphanumeric backlit LCD display and 10 control keys.

Function wise it can be used as a 100% replacement for our normal GSU. Its small form factor and weight makes it ideally suited for permanent installation in the model.

Connection to ECU`s up to Version 6.0 is via a 8-pin miniature flatcable connector directly to the LED-I/O interface. Connection to ECUs from Version 10.0 is via a 6-pin miniature flatcable directly to the ECU or the LED-I/O interface or 8-pin flat cable to JetCat I/O-interface with charging option.
