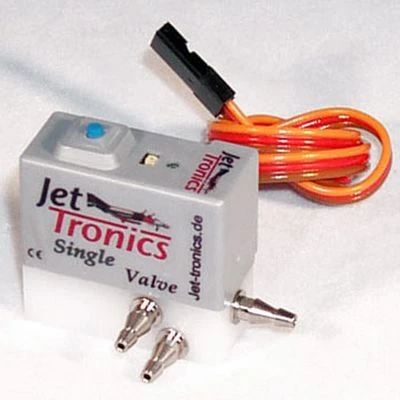

Single Action Brake Valve, By Jet-Tronics

Original price was: $79.85.Current price is: $55.90.

Nature-friendly materials, 100%.

Free Shipping Worldwide

Get the Best for Less

Safe and Secure Payments, Always

Single Action Brake Valve, by Jet-Tronics

Completely digital brake control. Provides both on/off and (PWM) proportional braking depending on mode selection. Also great for Air-Up / Spring down landing gear and speed brakes.

Electronic valves are self contained units which plug directly into your RX for device control. Unlike mechanical valves, there is no need for a servo. This valve provides proportional braking using Pulse Mode Modulation (PWM); braking is regulated by pulsing the valve. The faster the pulse, the more brake applied. PWM does tend to consume more air than mechanical valves, we suggest using a separate air storage tank for brake supply. If you desire an electronic brake valve which offers similar functionality but consumes less air, we suggest the Jettronic Low Loss brake valve, part JT-BKLL.

Supply voltage: 3.5 V – 7.5 V
Current consumption: 100 mA bei 5 V
Pressure range: 0 – 10 bar
Measurements (L/W/H): 28 x 16 x 28 mm
Weight: 23 g
Connection: Universal connectors for tubes from 2.5 to 4 mm outer diameter

Single Action Brake Valve, by Jet-Tronics

Completely digital brake control. Provides both on/off and (PWM) proportional braking depending on mode selection. Also great for Air-Up / Spring down landing gear and speed brakes.

Supply voltage: 3.5 V – 7.5 V
Current consumption: 100 mA bei 5 V
Pressure range: 0 – 10 bar
Measurements (L/W/H): 28 x 16 x 28 mm
Weight: 23 g
Connection: Universal connectors for tubes from 2.5 to 4 mm outer diameter
