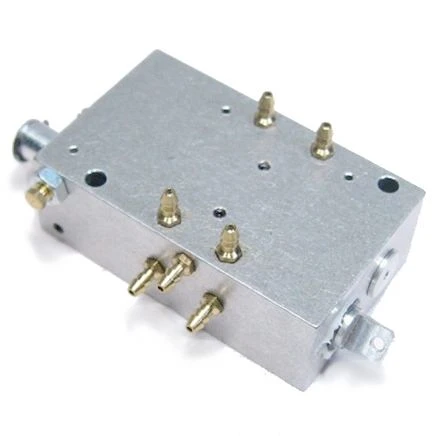

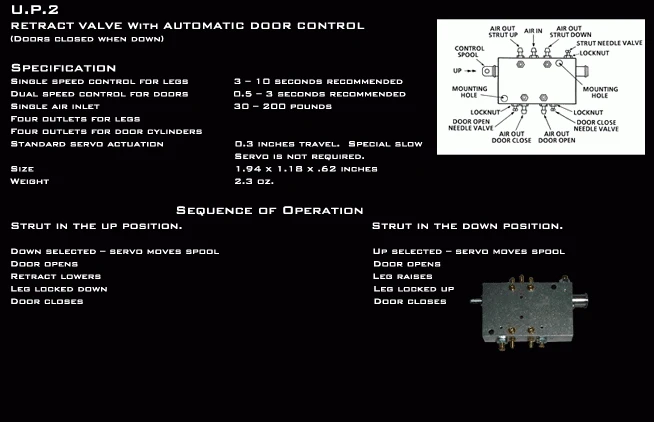

UP-2 Door Valve, by Ultra Precision
Retract Valve with Auto Door Control. Doors Close when Gear is Down. Made for air up & air down driven retracts and air cylinder actuated gear doors. Single air inlet (30 to 200 psi). Two up & two down nipples for the retracts. Two open & two close nipples for the doors.
- Single speed control for retracts (3-10 secs)
- Dual speed control for doors (0.5 to 3 secs)
- Standard servo actuation (0.3″ throw)
- Size: 1.94″ x 1.18″ x .62″
- Weight: 2.3 oz
UP-2 Door Valve, by Ultra Precision
Retract Valve with Auto Door Control. Doors Close when Gear is Down. Made for air up & air down driven retracts and air cylinder actuated gear doors. Single air inlet (30 to 200 psi). Two up & two down nipples for the retracts. Two open & two close nipples for the doors.
- Single speed control for retracts (3-10 secs)
- Dual speed control for doors (0.5 to 3 secs)
- Standard servo actuation (0.3″ throw)
- Size: 1.94″ x 1.18″ x .62″
- Weight: 2.3 oz
